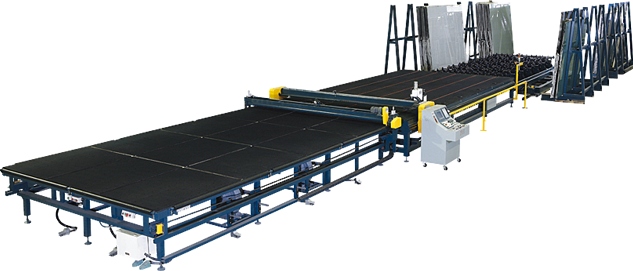

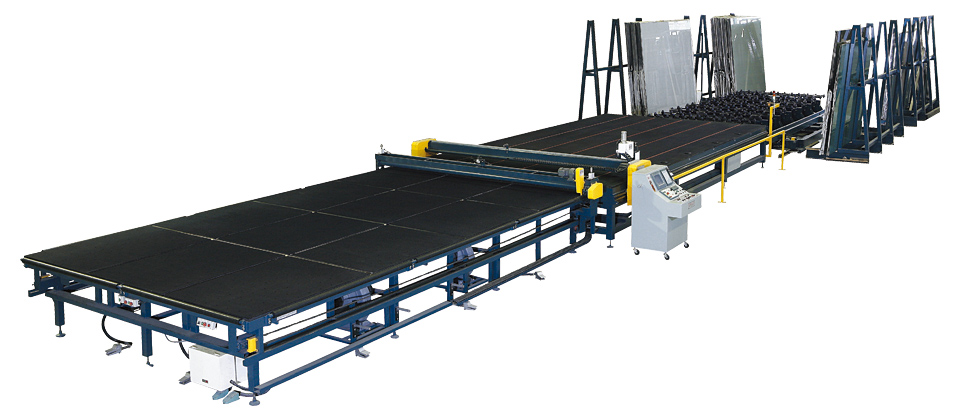

Three-stage Irregular Glass Automatic Cutting Machine
Products
01
Features
This machine adopts CNC controllers, is equipped with Mitsubishi Servomotor and precision rack and comes with automatic feeding device. The glass cutting machine itself equips with conveyor belt for transferring glass to reduce the chances of glass scratching. After the cutting is completed, the glass is automatically delivered to breaking region for further cutting process. As a result, no idle time for breaking is required. The machine allows multiple cuttings and meets the massive amount, small amount, diverse and changing demands. It is the best money-making machine for glass industry and glass dealers.
The CNC controller is equipped with straight cutting setting software. It is easy to operate and convenient to adjust size quickly. There are both Chinese and English interfaces. With the setting software developed by Wu E Machinery, you can easily edit various types of irregular cutting drawings simply by creating CAD files. There is also optional imported auto-setting software which pairing with loaders to automatically determine and load original materials in different sizes for cutting (up to 10 regions). The time on self-containing glass is reduced and hence safety is enhanced.
All CNC models can come with optional optical edge finder system. For any irregular glasses, the user only needs to start the edge finder system and then cutting drawings can be imitated directly on cutting machine. It takes five minutes only and mould opening is not required. Customers can save considerable cost on mould opening. The storage area for moulds is not required and the cutting drawings can be saved permanently in intangible cutting file format.
The CNC controller is equipped with straight cutting setting software. It is easy to operate and convenient to adjust size quickly. There are both Chinese and English interfaces. With the setting software developed by Wu E Machinery, you can easily edit various types of irregular cutting drawings simply by creating CAD files. There is also optional imported auto-setting software which pairing with loaders to automatically determine and load original materials in different sizes for cutting (up to 10 regions). The time on self-containing glass is reduced and hence safety is enhanced.
All CNC models can come with optional optical edge finder system. For any irregular glasses, the user only needs to start the edge finder system and then cutting drawings can be imitated directly on cutting machine. It takes five minutes only and mould opening is not required. Customers can save considerable cost on mould opening. The storage area for moulds is not required and the cutting drawings can be saved permanently in intangible cutting file format.
| Models | TC3-WI-144108 | TC3-WI-240120 | TC3-WI-240132 |
| Processing Travel (mm) | 3657*2743 | 6096*3048 | 6096*3353 |
| Cutting Table(mm) | 5000*3136 | 7139*3441 | 7139*3745 |
| X-Axis Maximum Speed | 160m/min | ||
| Y-Axis Maximum Speed | 160m/min | ||
| C-Axis Maximum Speed | matches X/Y-axis speed | ||
| X-Axis Maximum Speed | 3.5KW Japan Mitsubishi servomotor | ||
| Y-Axis Servomotor | 1KW Japan Mitsubishi servomotor | ||
| C-Axis Servomotor | 400W Japan Mitsubishi servomotor | ||
| Control Host | CNC numerical control 3-axis controlle | ||
| Glass Thickness To Be Cut | 3mm~25mm | ||
| Cutting Precision | ±0.2mm | ||
02
Three-stage Irregular Glass Automatic Cutting Machine
- Cutter Holder： adopting precision pneumatic control; C-axial control rotation angle; with fast tool changing design.
- Method of Fuel Supply：automatic fuel device. Fuel is supplied at tool down and fuel supply stops when tool is up
- Mode of Conveying：4 wire conveyor belts.
- Cutting Mode： automatic or manual cutting options.
- Control System：CNC cutting machine, with external setting computer.
- Transmission Mode：network connection or CF card.
- Transmission System：equipped with servomotor and precision rack drive.
- Setting Software：WUE CAD/CAM drawing software for single setting (standard)
- Setting Software：OPTIMA imported automatic setting software (optional)
03
Feeding Table
- Method of Loading： unilateral use of four suction arms (with vacuum motor and sucker).
- Suction Rack： both options of unidirectional or bidirectional loading are available.
- Conveying Direction：roller transmission with forward and backward direction.
- Control Method： PCL + inverte.
- Transmission System： adopts rubber rollers + chains.
- Assignment of Material Regions：each region has different size; automatic loading.
04
Flaking Machine
- Breaking Assistant：grillage-type flaking rod.
- Delivery Method： automatic air-float system for easy delivery of glass.
- Control Method： button + footswitch.
05
Facility Requirements
- Voltage：3Ø 220V 50A/60HZ。
- Air Pressure：6KG/CM2。
