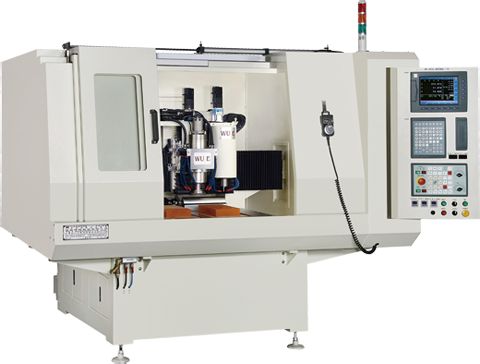

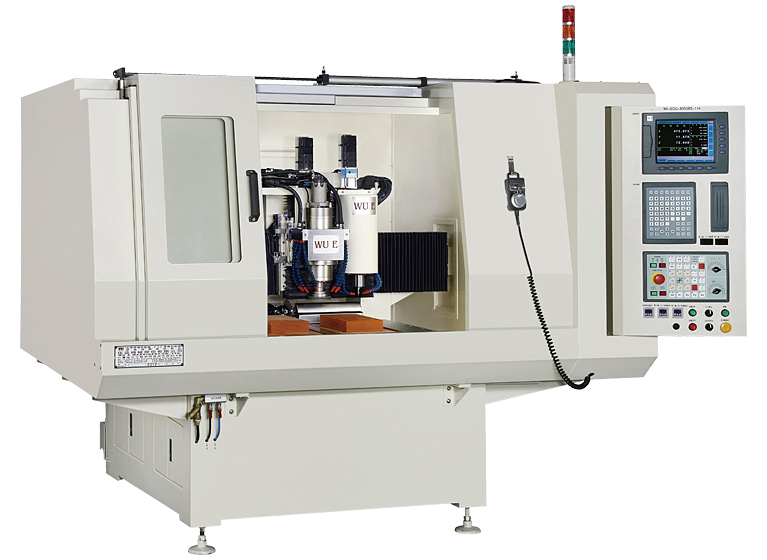

This machine adopts CNC controllers, is equipped with Mitsubishi Servomotor and high-precision ball screw.  The glass is placed on processing area manually or by robotic arm.  The equipment occupies small area and can simultaneously perform grinding and drilling at different sizes.  This machine meets the massive amount and changing demands and is currently on-line in LCD/TFT/TSP production lines of many leading photovoltaic panel factories.
　　The CNC controller is easy to operate and convenient to modify the shape and adjust the size of inner hole quickly.  There are both Chinese and English interfaces for option.  With the WUE CAD/CAM software, you can easily edit various types of grinding and drilling drawings by creating CAD files.
　　The CCD positioning system makes its easy for setting and operation.  Automatically photographed and inputting with actual coordinates to precisely correct the actual grinding and drilling position.  The target can be manually selected for fast coordinates input and does not require any setting.

Models	SOG-WI-8055S	SOG-WI-8055B	SOG-WI-8055BS	SOG-WI-8055SS	SOG-WI-8055BB
Processing Travel (mm)	X-Axis800*Y-Axis500*Z/C-Axis100
Cutting Table(mm)	800*500
X-Axis Maximum Speed	20m/min
Y-Axis Maximum Speed	20m/min
Z-Axis Maximum Speed	2m/min
C-Axis Maximum Speed	2m/min
X-Axis Maximum Speed	1KW Japan Mitsubishi servomotor
Y-Axis Servomotor	1KW Japan Mitsubishi servomotor
Z/C- Axis Servomotor	400W Japan Mitsubishi servomotor
Control Host	CNC numerical control 4-axis controller
Glass Thickness To Be      Ground/Drilled	set in accordance with tools [grinding wheel & grinding rod]
X/Y/Z-AxisPositioning Precision	±0.01/0.01/0.008mm
X/Y/Z-AxisPositioning Repeatability	±0.008/0.008/0.005mm
60000 RPM High Speed Drilling Axis	★	N/A	★	★★	N/A
12000 RPM Shape Grinding Axis	N/A	★	★	N/A	★★
CCD Positioning System	optional	optional	optional	non-optional	non-optional
Horizontal Automatic Tool      Changing Magazine (12 Tools)	★		★	★
Machine Size(cm)	230*210*210	230*210*210	230*210*210	230*210*210	230*210*210
Packed Size(cm)	293*222*218	293*222*218	293*222*218	293*222*218	293*222*218
Machine Net Weight(kg)	2,800	2,850	2,900	2,850	3,000
