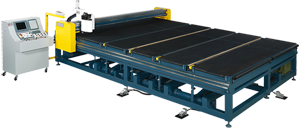

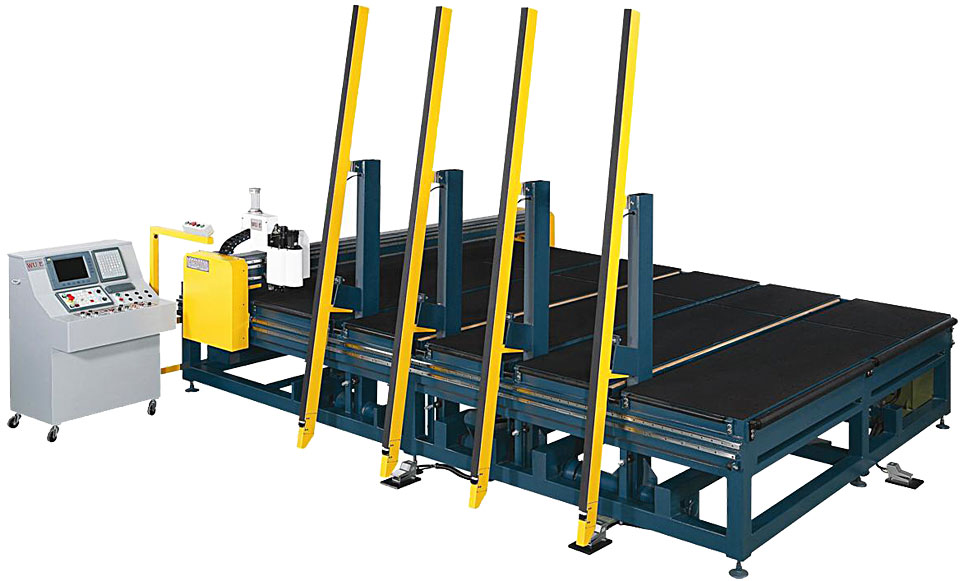

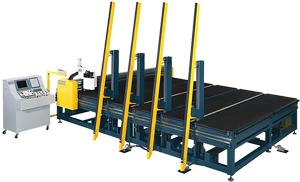

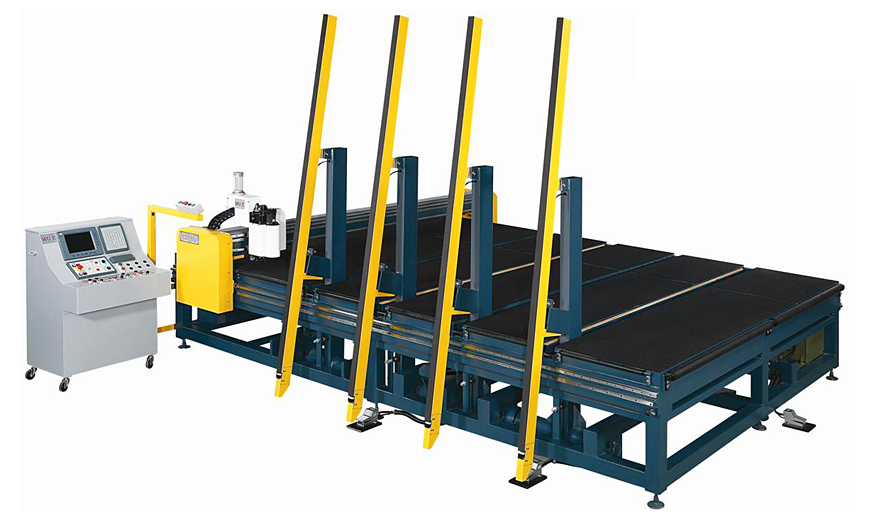

This machine adopts CNC controllers, is equipped with Mitsubishi Servomotor and precision rack and comes with rising feature of lifting-arm.  The glass is placed on the material hook manually; the lifting-arm will automatically place the glass on cutting table.  The equipment occupies small area and can simultaneously perform diverse cutting.  This machine meets the massive amount, small amount, diverse and changing demands.  It is the best money-making machine for glass industry and glass dealers.
　　The CNC controller is equipped with straight cutting setting software.  It is easy to operate and convenient to adjust size quickly.  There are both Chinese and English interfaces for option.  With the setting software developed by Wu E Machinery, you can easily edit various types of irregular cutting drawings by creating CAD files.  There is also optional imported auto-setting software: with simple input of cutting size, the computer will automatically calculate and edit cutting program.
　All CNC models can come with optional optical edge finder system.  For any irregular glasses, the user only needs to start the edge finder system and then cutting drawings can be imitated directly on cutting machine.  It takes five minutes only and mould opening is not required.  Customers can save considerable cost on mould opening.  The storage area for moulds is not required and the cutting drawings can be saved permanently in intangible cutting file format.

Models	TC4-WI-144108	TC4-WI-240120	TC4-WI-12096
Processing Travel (mm)	3657*2743	6096*3048
Cutting Table(mm)	4700*3136	7139*3441
X-Axis Maximum Speed	160m/min
Y-Axis Maximum Speed	160m/min
C-Axis Maximum Speed	matches X/Y-axis speed
X-Axis Maximum Speed	3.5KW Japan Mitsubishi servomotor
Y-Axis Servomotor	1KW Japan Mitsubishi servomotor
C-Axis Servomoto	400W Japan Mitsubishi servomotor
Control Host	CNC numerical control 3-axis controlle
Glass Thickness To Be Cut	3mm~25mm
Cutting Precision	±0.2mm
